Large Boat Arch, Fishing Tower for gunnel with up to 135" 7/22
FOS
FOS-400

hot offer
FOS-400
Your price:  $1,895.95 - $3,479.85


Input - Boat/Model/Year
Select Mounting Type*
Select Mounting Width*
Add Leg Extension:
Add Mounting Wedges:
Add Rod Holders:
Add Net Holders:
Upgrade to Captains Package:
Add Standoffs:
Add Light/Antenna Brackets:
Add Radar Pad:
Free Long Sleeve Shirt:
Select Shirt Size:
(Options marked with * are required)


 NEW  - Commander Uni-Arch

SHIPPING INCLUDED TO LOWER 48 STATE DESTINATIONS
CALL FOR SHIPPING COST QUOTE TO LOCATIONS OUTSIDE THE LOWER 48 STATES

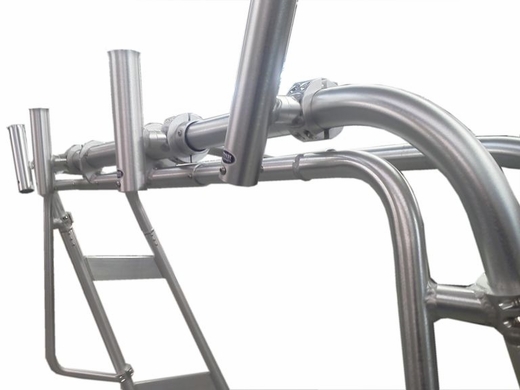

Polished Anodized Commander Uni-Arch

This new arch features a double beam across the top and down sides, also very useful as a grab bar.

Extra support bracing makes this arch the most rugged on the market.

Fits Most Boats. Adjust from 50" up to 135" Wide.

Up to 57" Tall to the bottom side.

Comes with backing plates, break away mounting hardware and 4 bolt on adjustable rod holders.

You can add bolt on rod holders and mount them where you need, just like the 4 stock ones. Or get the arch and ad extras later.

Very strong and usable unit. Built from 2" schedule 40 aluminum tube.

Designed to fold down in a matter of minutes.

Hollow tube all the way through to run and hide wires.  You will need to drill an access hole near the bottom of one of the legs above the mounts approximate 1" above the top of the mounts when the mounts are fully seated in the tube and an exit hole near where you will be mounting your lights on the top cross tube.
Insert a wire during assembly to serve as a cord for pulling the wires through the tube when the assembly is complete.
We recommend using a good quality automotive anti-seize compound on all threads. While not mandatory this additional step will save you work later should you decide to move or disassemble rod holders etc.
Two different style mounts "side and deck". Mounting holes are .278 diameter and are sized for 1/4  20 screws. Stainless steel screws are recommended. Also backing plates are recommended. You may need to cut small amounts of flotation foam under the gunnels on some boats.

When you pick an approximate width you will have 8" of adjustment in and out.

If you have any questions please feel free to call 586-255-0212

Unit weighs 90lbs.

5 Year Warranty.

***Select standoff options for increasing strength to side mounts

Assembly required. Bolts,nuts and lock washers for holding the bases to the deck or cabin side are not included due to the wide variety of hull and or cabin thicknesses. Purchase the stainless steel bolts, nuts, fender washers and lock washers locally.
 More terrific options for your arch, Click on the image or part no. below.








 100-18  107  100-17  100-13  100-20  100-15  100-32  100-21










 Captains Pkg
 109  180  FOS-22  100-19  100-26 108-2x4
 100-24

Captains Package upgrades to a total of=
8 Bolt on Rod Holders Part# 107 (4 come with your arch & 4 with Capt. Pkg)
1 Light Bracket Set Part# 100-13
2 Quick Swivel Rod Holders Part# 180
1 Net Holder Part# 109


You can swap some items, however not all items have the same swap value. The rod holders, net holder, radar pad and light bracket set are even swaps. There is a $15.00 up charge to swap one of the items included for a the swivel mount rod holder.

Check with us if you want to swap items included in the captains package.
